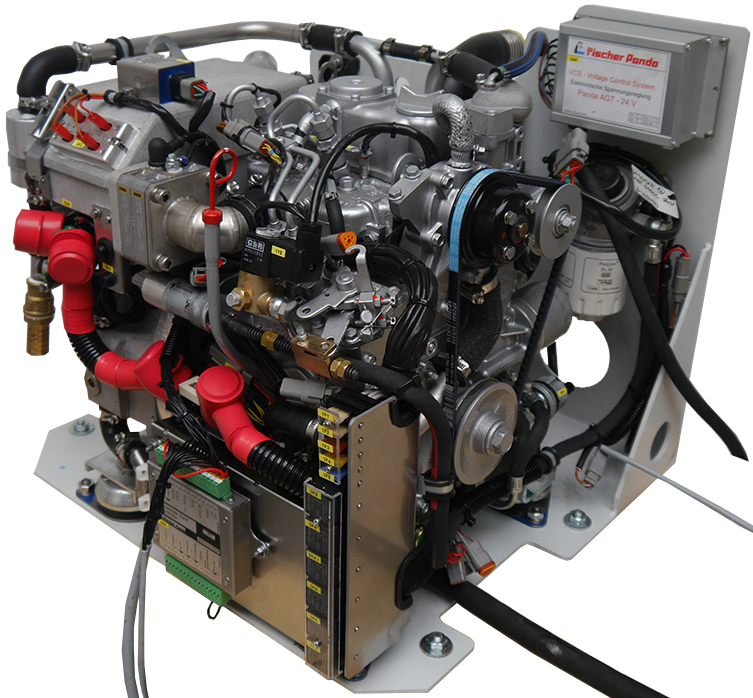

Panda AGT 5000/24 V PVM-NE
- Nominal Output: 4,1 kW at sea level / +50 °C
- Output Voltage: 28.2 V DC
- Output Current: 160 A
- Start System: 24 V Electrical
- Engine Type: Z482
- Engine Cylinders: 2
- Fuel Supply: Connections for external or vehicle fuel tank
- Frame / Mounting: Generator mounted on frame for installation in protected area
- Cooling System: External radiator cooling system (hoses for connection)
- Instrumentation & Electrical: Externally Mounted Panel
- Approx. APU Weight (dry): 143 kg (dry)
Description
- Engine Manufacturer: Kubota
- Engine Operating Temp. Range: -32°C up to +50 °C (other temperature ranges on request)
- Fuel Types: F 34, F 54 ,Standard automotive diesel fuel, kerosene, JP 8, JP 5, JET A
- Approx. Fuel Consumption: 0,44 - 1,15l/h
